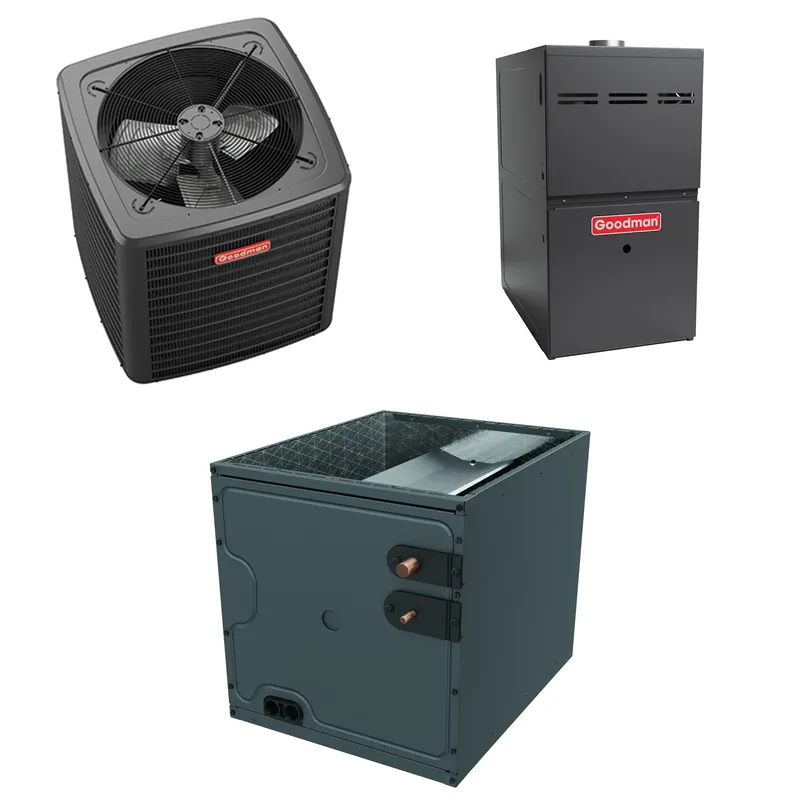

Time-Limited Goodman – 2.0 Ton Cooling – 60k BTU/Hr Heating – Heat Pump + Furnace System – 14.3 SEER2 – 80% AFUE – Upflow

Features

The Goodman GSZB402410 GMVC800603BN CAPTA3022B4 bundle is a comprehensive heating and cooling solution for your home. This bundle includes the GSZB4 heat pump, GMVC80 furnace, and CAPTA cased evaporator coil. These components work together to provide efficient and reliable comfort for your home.

Heat Exchanger Design

The GMVC80 furnace employs a heavy-duty tubular heat exchanger made of aluminized steel, ensuring efficient heat transfer and longevity.

Variable Speed ECM Motor

The GMVC80 features an efficient and quiet variable speed motor that adjusts according to heating or cooling demand, providing accurate temperature control.

Quiet Comfort

The blower and gas valve of the GMVC80 are designed for low sound levels, with airflow and fan speed options for quiet operation.

ComfortBridge™ Technology

This furnace continually monitors system performance for customized indoor comfort.

All-Aluminum Coil

The CAPTA evaporator coil uses an all-aluminum design with sine fins and grooved tubes for efficient heat transfer.

Internal Thermostatic Expansion Valve

The CAPTA includes a factory-installed internal thermostatic expansion valve for maintaining ideal refrigerant flow.

Condensate Management

The CAPTA features foil-faced insulation to inhibit condensate formation and a rust-resistant thermoplastic drain pan for effective condensate management.

Energy-Efficient Compressor

The GSZB4 heat pump uses an energy-efficient compressor for reliable refrigerant flow.

Smartshift™ Technology

The GSZB4 offers a time-delay defrost option for quiet and smooth transitions to defrost mode.

Copper Tube/Enhanced Aluminum Fin Coil

The air conditioners condenser coil features aluminum fins and copper tubing for maximum efficiency.

Factory-Installed Suction-Line Accumulator

An accumulator prevents compressor damage from a sudden surge of liquid refrigerant.

Factory-Installed Compressor Crankcase Heater

A crankcase heater prevents refrigerant migration by maintaining higher oil temperature in the crankcase.

Factory-Installed High-Capacity Muffler

A muffler reduces noise and high-frequency vibrations.

High And Low-Pressure Switches

Pressure switches suspend heat pump operations if unsafe pressure levels are detected.

Secure Cabinet

The GSZB4 features a removable grille-style top design that is UL 60335-2-40 compliant.

Heavy-Gauge Galvanized-Steel Cabinet

This cabinet is made of galvanized steel with a durable powder-paint finish and a steel louver coil guard to protect the equipment.

Extended Warranty

Goodman offers a 10-year limited parts warranty when registered online within 60 days of installation.

Product Note

The recommended line set size for this system varies based on installation requirements. Compatible line sets are listed under the Recommended Accessories tab.
