Siemens 171E-10316 Ball Valve Assembly 63 Cv Clearance
Home / Ball Valves / Siemens 171E-10316 Ball Valve Assembly 63 Cv Clearance

Siemens 171E-10316 Ball Valve Assembly 63 Cv Clearance

Original price was: $285.65.Current price is: $114.26.

For orders under $60.00, a shipping fee of $9.99 applies.
Fast delivery, satisfaction guaranteed.
Secure Payment.
SKU: SK0133228 Category: Tag:
Share

Product Description

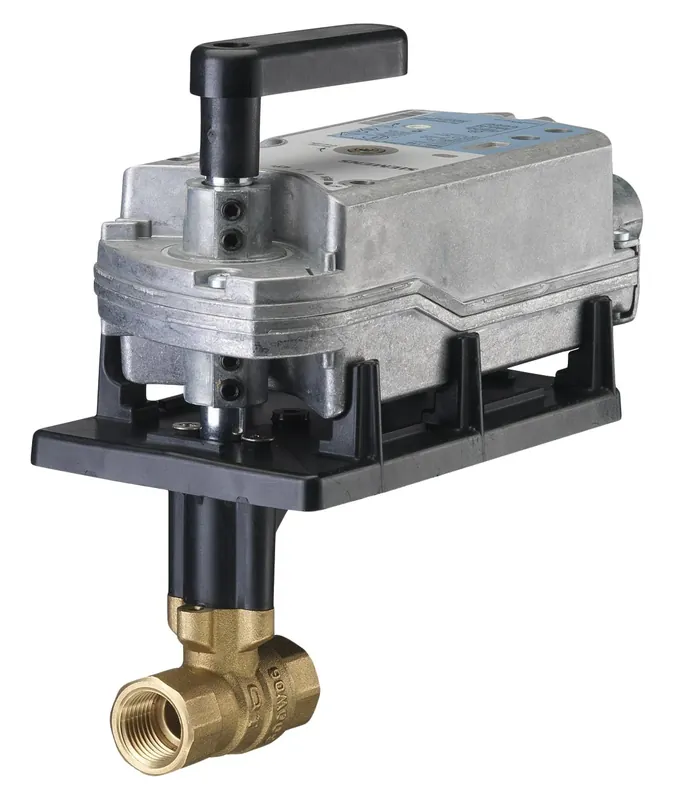

The Siemens 171E-10316 Ball Valve Assembly is expertly designed to provide reliable and efficient flow control in HVAC systems. This assembly features a 1 inch NPT 2-way ball valve and comes equipped with a GMA121.1P actuator, making it suitable for a wide range of applications.

  • High-performance chrome-plated brass ball and brass stem
  • Robust 200 psi close-off pressure ensures tight sealing
  • Fail-safe actuator enhances safety and reliability

Product Highlights

This ball valve is engineered for longevity and optimal performance, featuring ANSI Class IV leakage protection and a body rating of 600, making it ideal for commercial HVAC systems. It supports a maximum temperature of 250 degrees Fahrenheit and offers easy installation with its universal mounting plate.

Product Information

Technical Specifications

  • Valve Type: 2-way
  • Connection Size: 1 inch FNPT x FNPT
  • Material: Brass
  • Pressure Rating: 200 psi
  • Flow Capacity: 63 Cv
  • Actuator Type: Floating, Non-Spring Return
  • Voltage: 24 VAC
  • Torque: 44 lb-in
