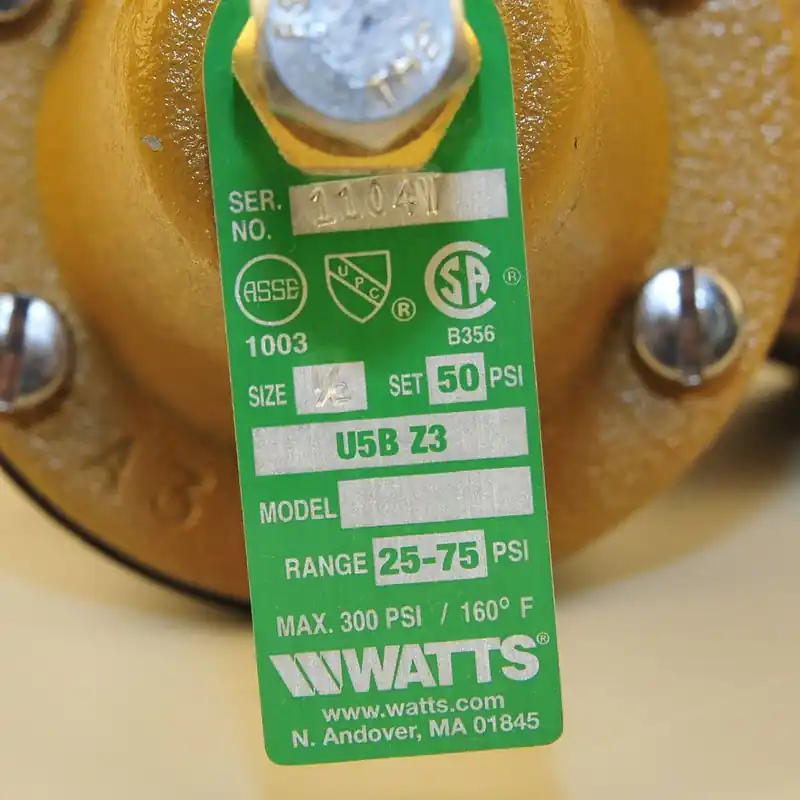

Place Order Watts 0009100 Series LFU5B-Z3 1/2 Inch Pressure Reducing Valve Lead-Free

The Watts Series LFU5B-Z3 1/2 inch Copper Silicon Alloy Pressure Reducing Valve effectively manages water pressure in residential, commercial, and industrial settings. Ensuring protection for plumbing systems and optimizing water consumption, this valve is a staple in water pressure management. Manufactured by a top industry leader, Watts, the valve is crafted from lead-free materials, affirming safety and compliance.

• Adjustable pressure settings ranging from 25 to 75 psi.
• Integrated stainless steel strainer facilitates easy maintenance and cleaning without full disassembly.
• Thermal expansion bypass feature helps in controlling pressure increases.

Product Highlights

This Watts pressure reducing valve features a robust copper silicon alloy body, a high-performance internal strainer, and a sealable spring cage. Suited for systems up to 300 psi initial pressure, its settings can be fine-tuned for specific needs, making it a versatile choice for varied water systems.

Product Information

Standard Information

• Brand: Watts
• MPN: 0009100

Technical Specifications

• Connection Type: FNPT Union x FNPT
• Dimension: 5-1/2 inches L x 3-1/16 inches W x 5-7/8 inches H
• Material: Lead-Free Cast Copper Silicon Alloy
• Pressure Rating: 25 – 75 psi
• Temperature Rating: 33 – 160 degrees F
• Standards/Certifications: ASSE 1003, ANSI A112.26.2, CSA B356, UPC approved, ANSI/NSF 61G certified, IAPMO listed
