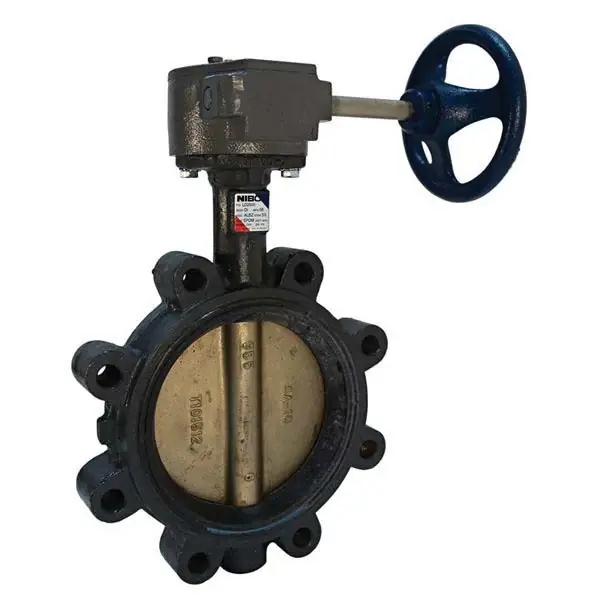

NIBCO NLG110N LD-2000 Series 12 in. Ductile Iron EPDM Gear Operator Handle Butterfly Valve Must Have

The NIBCO NLG110N LD-2000 Series 12-inch Lug Style Butterfly Valve is engineered for exceptional performance in both commercial and light industrial applications. It offers a bubble-tight shut-off at 200 psi and can be installed between standard ASME Class 125/150 flanges without a downstream flange.

• Enhanced durability with its ductile iron body and aluminium bronze disc.
• Optimal functionality with gear operator and quarter-turn opening and closing.
• EPDM seat liner provides excellent chemical and thermal resistance.

Product Highlights

This valve is equipped with a stainless steel stem and geometric drive that eliminates the need for pins or bolts, reducing leak paths and turbulence. Backed by a five-year limited warranty, this valve is a reliable choice for HVAC, vacuum, and various water service applications.

Technical Specifications

• Body Material: Ductile Iron
• Disc Material: Aluminum Bronze
• Stem Material: 416 Stainless Steel
• Seal Material: EPDM
• Pressure Rating: 200 psi
• Temperature Rating: 225 deg F Continuous, 250 deg F Intermittent
• Operator Type: Gear
• Standards/Certifications: MSS SP-67, API 609, ANSI/NSF 61
