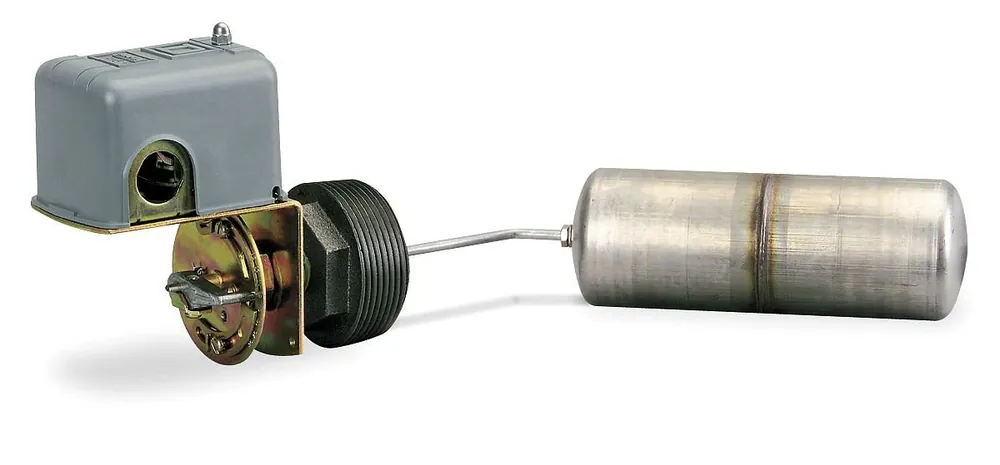

Must Have Schneider Electric 9037HG34R Square D Closed-Tank Float Switch Power Circuit 45-Degree Float Rod Angle

The Schneider Electric 9037HG34R Square D Closed-Tank Float Switch is engineered to control and monitor liquid levels within industrial settings. This float switch, featuring a side mount and a left float position, is particularly designed for power circuits, with an open-on-rise function. Its robust design is well-suited for harsh environments.

• Durable stainless steel float and stem.
• Operating temperature ranges from -22 degrees to 220 degrees Fahrenheit.
• Pressure capacity up to 50 psi.

Product Highlights

The 9037HG34R model is built with a 45-degree float rod angle to ensure precise measurement. It also features a NEMA 1 rating which signifies its suitability for certain industrial environments without exposure to hazardous dust or moisture.

Product Information

Standard Information

• Dimensions: Overall length of 14.66 inches with a float diameter of 2.58 inches.
• Electrical Specifications: Can handle up to 600 A of current and 600 V of voltage, supporting applications that require high power.

Technical Specifications

• Installation: 2.5 inches MNPT tank connection size, ensuring a firm and secure installation.
• Functionality: Opens on rise contact form with a DPST switch.
• Durability: Made from steel, capable of withstanding rigorous industrial use.
