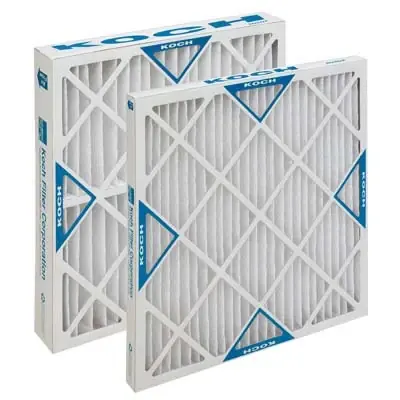

Koch Filter MX-9-444 Multi-Pleat 10 x 20 x 1 in. MERV 8 Synthetic Extended Surface Pleated Panel Air Filter with Mechanical Media Direct From Factory

The Koch Filter MX-9-444 Multi-Pleat is a medium efficiency extended surface pleated panel air filter designed for high initial efficiency and superior performance. With a MERV 8 rating, it is suitable for use in hospitals, laboratories, pharmaceutical plants, and commercial office buildings requiring high indoor air quality.

• Considered an upgrade from standard pleated filters
• Mechanical media not reliant on electrostatic charge for efficiency
• Low resistance to airflow

Product Highlights

The MX-9-444 air filter features mechanical MERV 8 synthetic media, a sturdy double wall frame, and a moisture-resistant design.

Product Information

Standard Information

• Brand: Koch Filter
• MPN: MX-9-444
• Filter Type: Pleated

Technical Specifications

• UPC: 950053531559
• Depth: 3/4 inches
• Width: 19-1/2 inches
• Height: 9-1/2 inches
• Weight: 0.581 pounds
• Includes: Frame
• Frame Type: Moisture-Resistant Double Wall Die Cut Beverage Board
• Media Area: 2.3 square feet
• Filter Size: 10 x 20 x 1 inches
• MERV Rating: 8
• Air Flow Rate: 425 CFM
• Catalog Number: MX-9-444
• Final Resistance: 1 inches WG
• Maximum Velocity: 300 FPM
• Initial Resistance: 0.26 inches WG
• Specifications Met: ASHRAE 52.2-2012, cUL Listed, UL 900
• Filter Media Type: Synthetic
• Maximum Operating Temperature: 200 degrees F
