Goodman – 2.5 Ton Cooling – 80k BTU/Hr Heating – Air Conditioner + Multi Speed Furnace System – 15.2 SEER2 – 80% AFUE – Upflow Super Sale

Overview

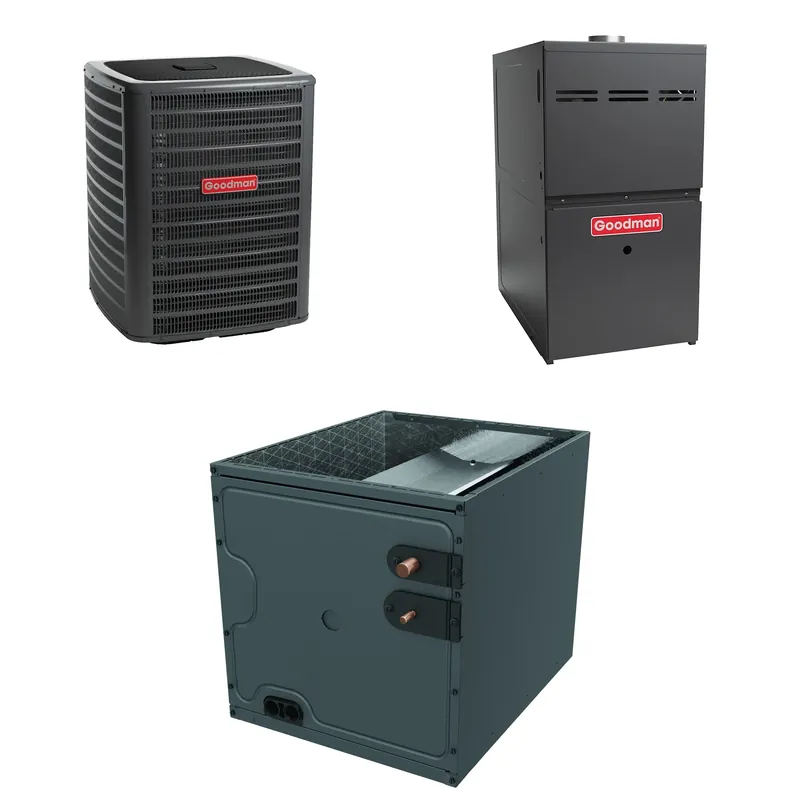

The Goodman 2.5 Ton Cooling 80k BTU/Hr Heating Air Conditioner Multi Speed Furnace System is equipped with a GSXN4 air conditioner, a GM9C80 furnace, and a cased CAPTA evaporator coil. This package is designed for ease of installation and long-lasting performance. It is a perfect solution for regions requiring moderate cooling and efficient heating.

Features

• All-aluminum evaporator coil for effective heat transfer.
• Internal thermostatic expansion valve installed in the CAPTA coil.
• Condensate management with a rust-resistant drain pan.
• GM9C80 furnace with a tubular heat exchanger and multi-speed ECM motor.

Product Highlights

The Goodman GSXN403010 GM9C800805CX CAPTA3626C4 bundle provides an efficient and comprehensive HVAC system capable of effectively cooling and heating your home. The included components are designed for high efficiency, quiet operation, and durability.

The Goodman GSXN403010 Air Conditioner

The Goodman GSXN403010 is a 2.5 ton air conditioner unit. It features a single-stage compressor and efficient copper tube/aluminum fin coil to enhance heat transfer.

• 14.3 SEER2 rating.
• Factory-installed filter drier.
• Heavy-gauge galvanized-steel cabinet.
• Energy-efficient compressor.

Key Information

• Type: Condenser
• Cooling Capacity: 30,000 BTU
• WEight: 156 pounds
• Dimensions: 29 x 29 x 39.5 inches (D x W x H)

The Goodman GM9C800805CX Gas Furnace

The GM9C800805CX is a gas furnace with 80k BTU heating capacity. It uses a multi-speed ECM motor and features an advanced heat exchanger made of aluminized steel.

• 80% AFUE efficiency.
• Self-diagnostic control board.
• Quiet operation with low sound levels.

Key Information

• Type: Gas Furnace
• Heating BTU: 80,000
• Weight: 129 pounds
• Dimensions: 28 x 21 x 33.375 inches (D x W x H)

The Goodman CAPTA3626C4 Cased Evaporator Coil

The CAPTA3626C4 is a cased evaporator coil with a 3 ton cooling capacity. It features an internal thermostatic expansion valve for ideal refrigerant flow and aluminum fins for optimal heat transfer.

• Foil-faced insulation to prevent condensate.
• Rust-resistant thermoplastic drain pan.
• 21-inch cabinet width.
• Performance: 36,000 BTU nominal cooling capacity.

Key Information

• Type: Evaporator Coil
• Cooling Capacity: 36,000 BTU
• Weight: 57 pounds
• Dimensions: 21 x 21 x 26 inches (D x W x H)
