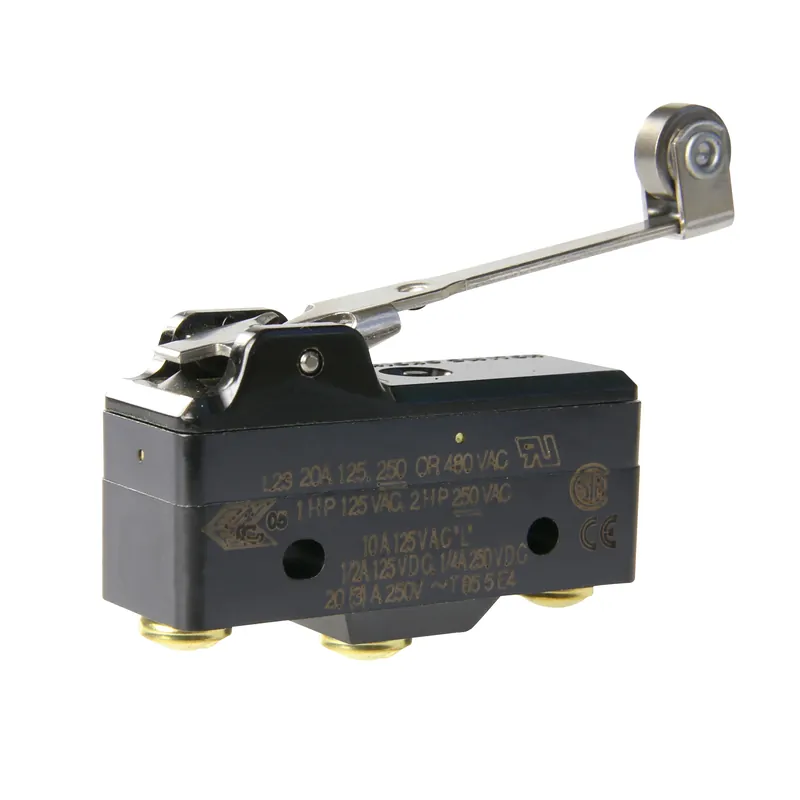

Crafted Honeywell BA-2RV2-A2 Microswitch Large Basic Switch 250 VAC 20 A

The Honeywell BA-2RV2-A2 microswitch is designed for robust performance in industrial environments. This switch boasts a rigid roller lever actuator and snap action mechanism for reliable operation.

• High durability with a phenolic housing and silver contacts.
• Wide operating temperature range from minus 55 to 85 degrees Celsius.
• Long mechanical life of up to twenty million cycles.

Product Highlights

Engineered for precision, the BA-2RV2-A2 offers a low operating force and high contact reliability, making it suitable for high-stakes industrial applications. Its SPDT contact configuration and twenty ampere rating at 250 VAC ensure efficient performance.

Product Information

Standard Information

• Series: BA Series
• Type: Standard

Technical Specifications

• Actuator: Rigid Roller Lever
• Material: Phenolic
• Application: Versatile use including irrigation systems, timing devices, and HVAC equipment
• Contact Rating: 20 A at 250 VAC
• Voltage Rating: 250 VAC
• Amperage Rating: 20 A
• Connection Type: Thread
• Number of Poles: 1
• Frequency Rating: 50/60 Hz
• Operating Cycles: 20000000 cycles
• Operating Temperature: -55 to 85 degrees Celsius
• Standards/Approvals: CE 61058-1, CSA LR41372, UL E12252
